Body:
Profiled Swamp Ash TEW (Tonally Enhanced Wood)
Top:
Curly Poplar
Customer choice: 4A | 5A grade. Upcharge for higher grades.
Neck heel:
Special contoured for easy upper frets access
Unique Features:
Back belly cut
Binding:
No binding

Construction:
Bolt-on neck joint with a 4-screw mounted on ferrules
Two additional graphite rods
Scale:
26.5″ (673mm)
Neck:
1-pc / Wenge
Radius:
16″ (406 mm)
Fingerboard:
Birdseye Maple – T.E.W. (Tonally Enhanced Wood)
No binding
Markers & Inlays:
Original Luminlay™ side dots - Super Blue 2 mm
Abalone front dots
Neck dimensions:
Width at nut – 47.5mm
Width XII fret – 60mm
Width XXIV fret – 66mm
Thickness - 21 to 22mm
C-Shape neck
Truss rod:
Double action truss rod
Frets:
24 extra jumbo, Ferd Wagner Stainless Steel
Crown dimensions: 3,34 x 2.80mm (w × h)

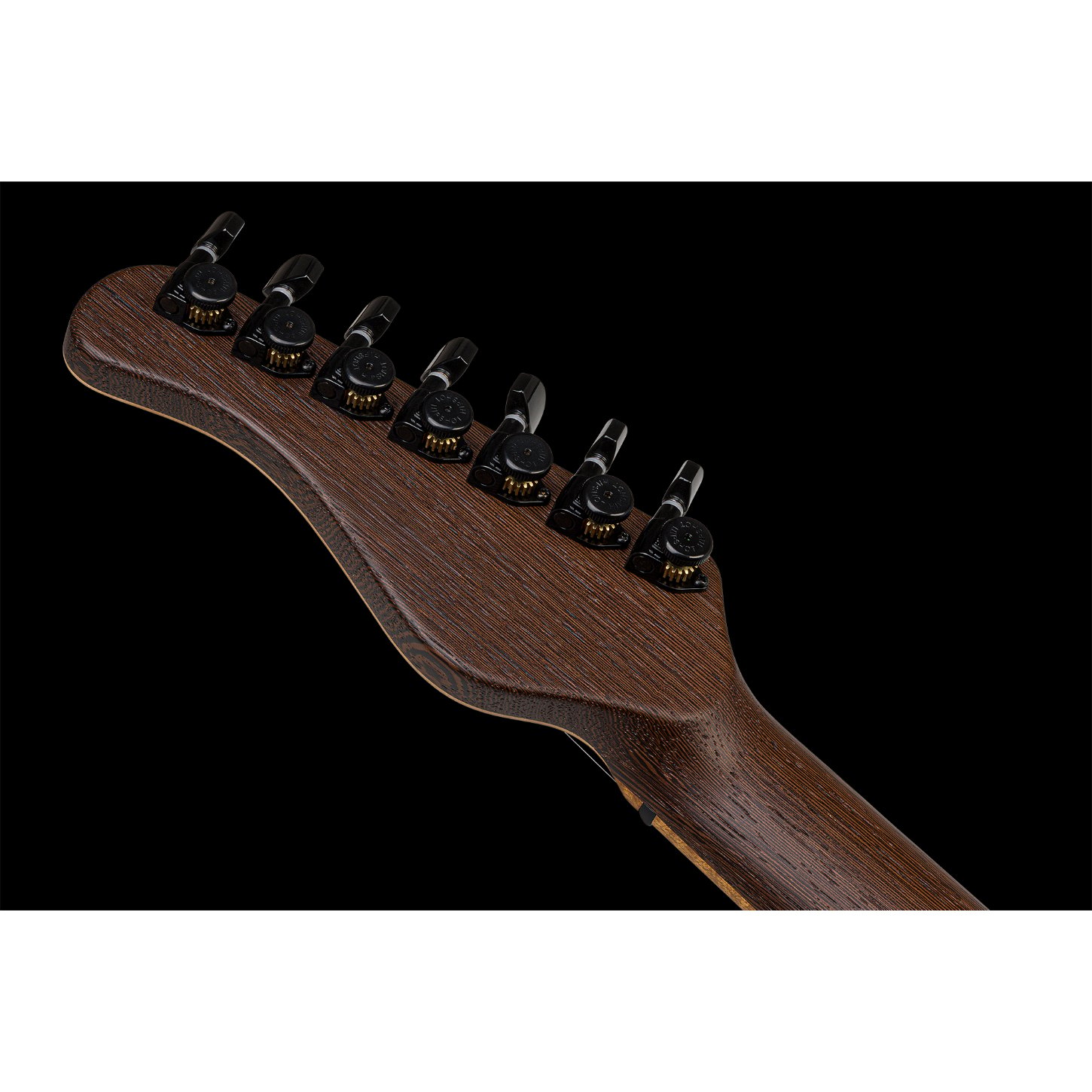

Headstock:
Straight; topped with chosen body wood
No binding
Nut:
Graph Tech TUSQ
Tuners layout:
7 in line

Pickups / Electronics:
H-H / Velvetrone® Ironside + Solium
Other Brands, Models and Configuration of pickups – on request
(extra fee may be required)
Control:
1 × Volume (push-pull for coil splitting);
Mayones Treble Bleed Mod?
Standard on all guitars built after summer of 2020.
5-way lever pickup switch?
Knobs:
Standard metal dome knob(-s)

Bridge:
Hipshot 7 String Fixed Guitar Bridge
Strings:
.010 - .60 [7-string]
Tuners:
Hipshot Grip-Lock Locking Tuners
Additional equipment:
Schaller Security Straplocks
Switchcraft jack
Hardware colour:
Black (BLK)
Bag / case:
Mayones Hybrid Case
