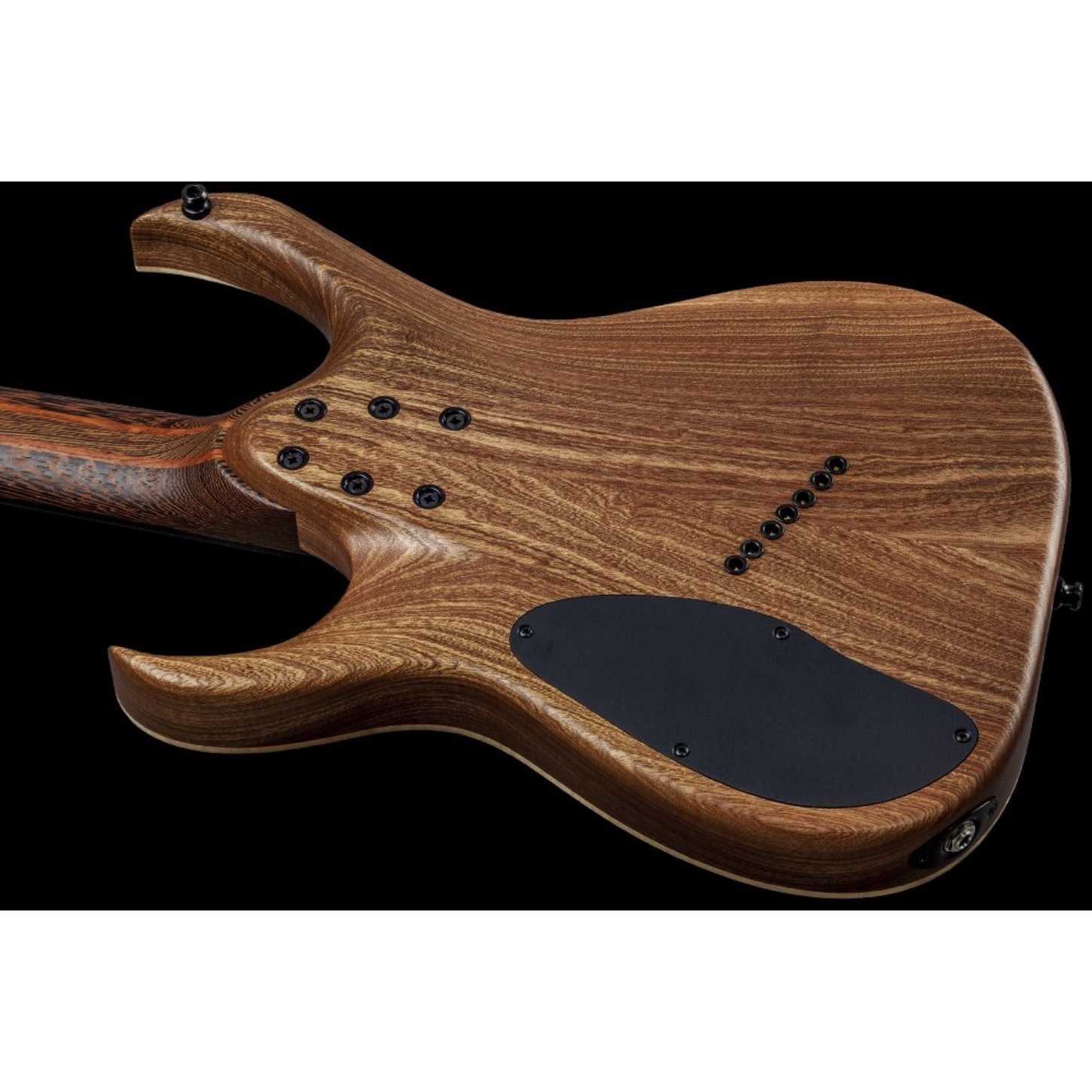

Body:
Mahogany
Transparent Natural / Matt finish (T-NAT-M)
Top:
Eye Poplar
Flamed Maple
Neck heel:
Special contoured for easy upper frets access
Unique Features:
Front forearm contour*
* - Replaces previous version with the Duvell 2019 Facelift.
Back belly cut
Binding:
No binding

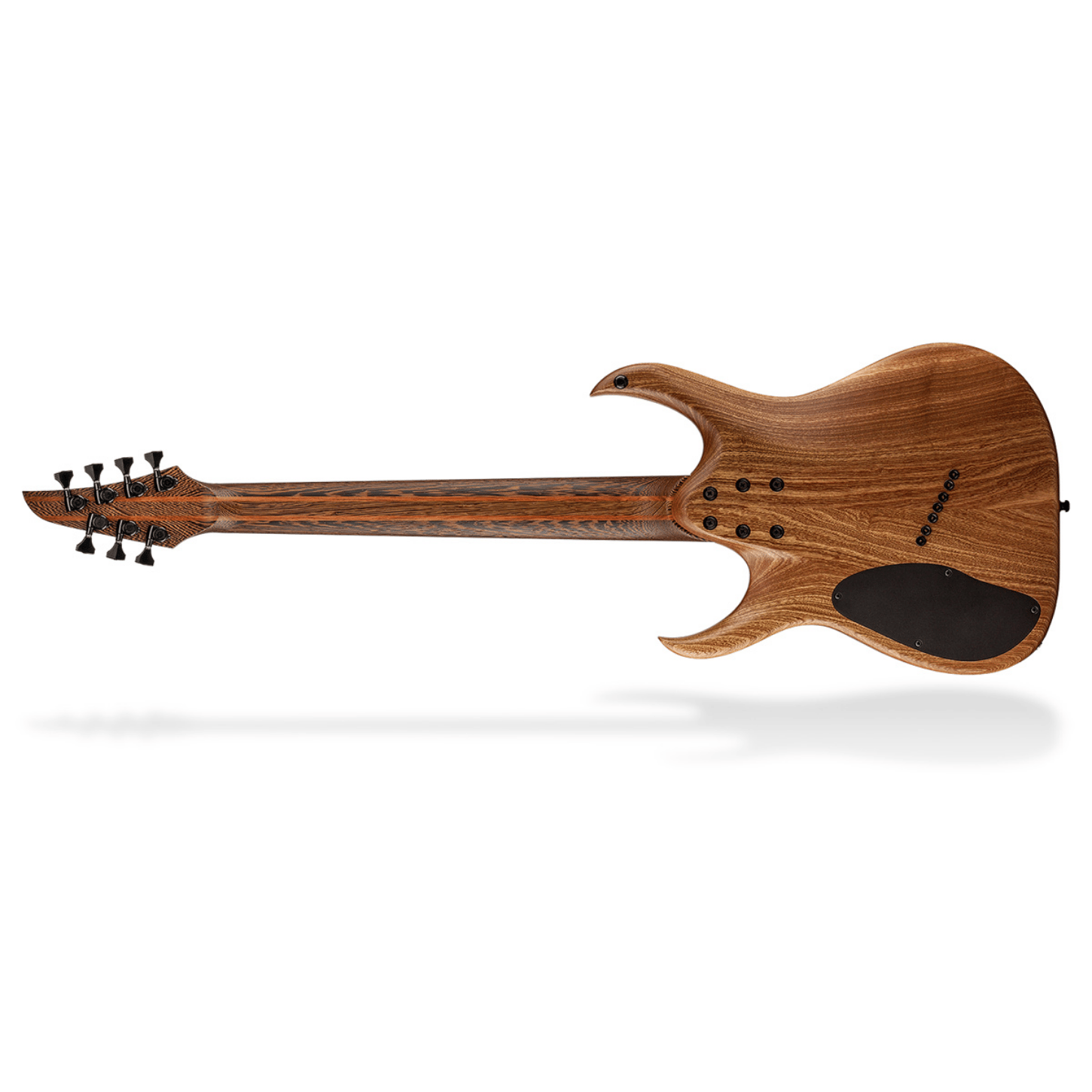

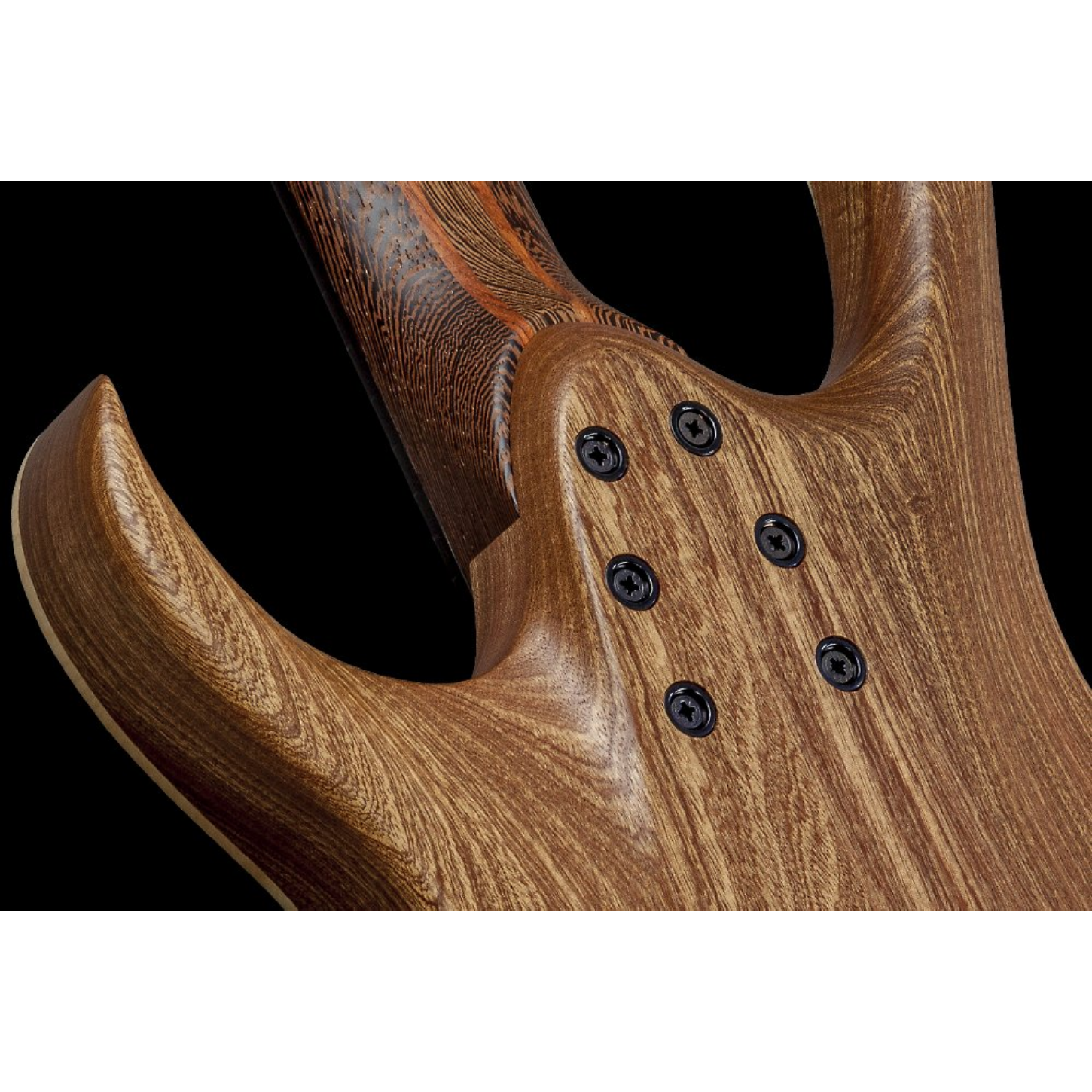

Construction:
Bolt-on neck joint with a 4-screw mounted on ferrules*
* - Replaces previous 6-screw version with the Duvell 2019 Facelift.

Scale:
V•Frets Guitar Multiscale 25.4" - 27" (645 - 687 mm)
Neck:
5-ply / Wenge-Purpleheart
Post-2017, replacing 5-ply Wenge-Bubinga after new CITES regulations.
Transparent Natural / Matt finish (T-NAT-M)
Radius:
16″ (406 mm)
Fingerboard:
Ebony
No binding
Markers & Inlays:
Original Luminlay™ side dots - Super Blue 2 mm
Neck dimensions:
Width at nut – 48.5 mm
Width XII fret – 61.0 mm
Width XXIV fret – 66.0 mm
Thickness I fret – 20.0 mm
Thickness XII fret – 21.0 mm
Truss rod:
Double action truss rod
Model's name inscripted in the trussrod cover

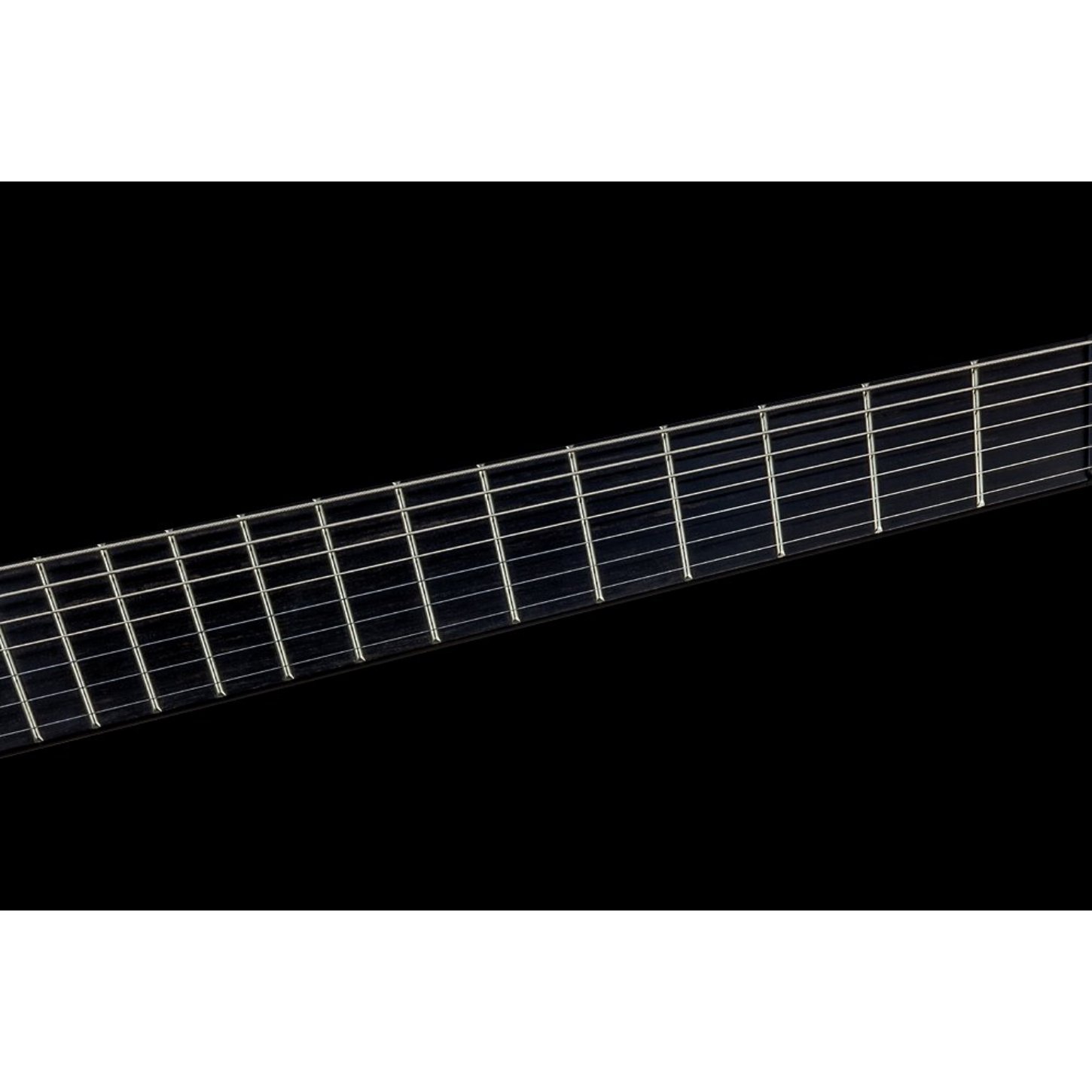

Frets:
24 extra jumbo, Ferd Wagner 9685 Stainless Steel
Crown dimensions: 2.80 × 1.45 mm (w × h)

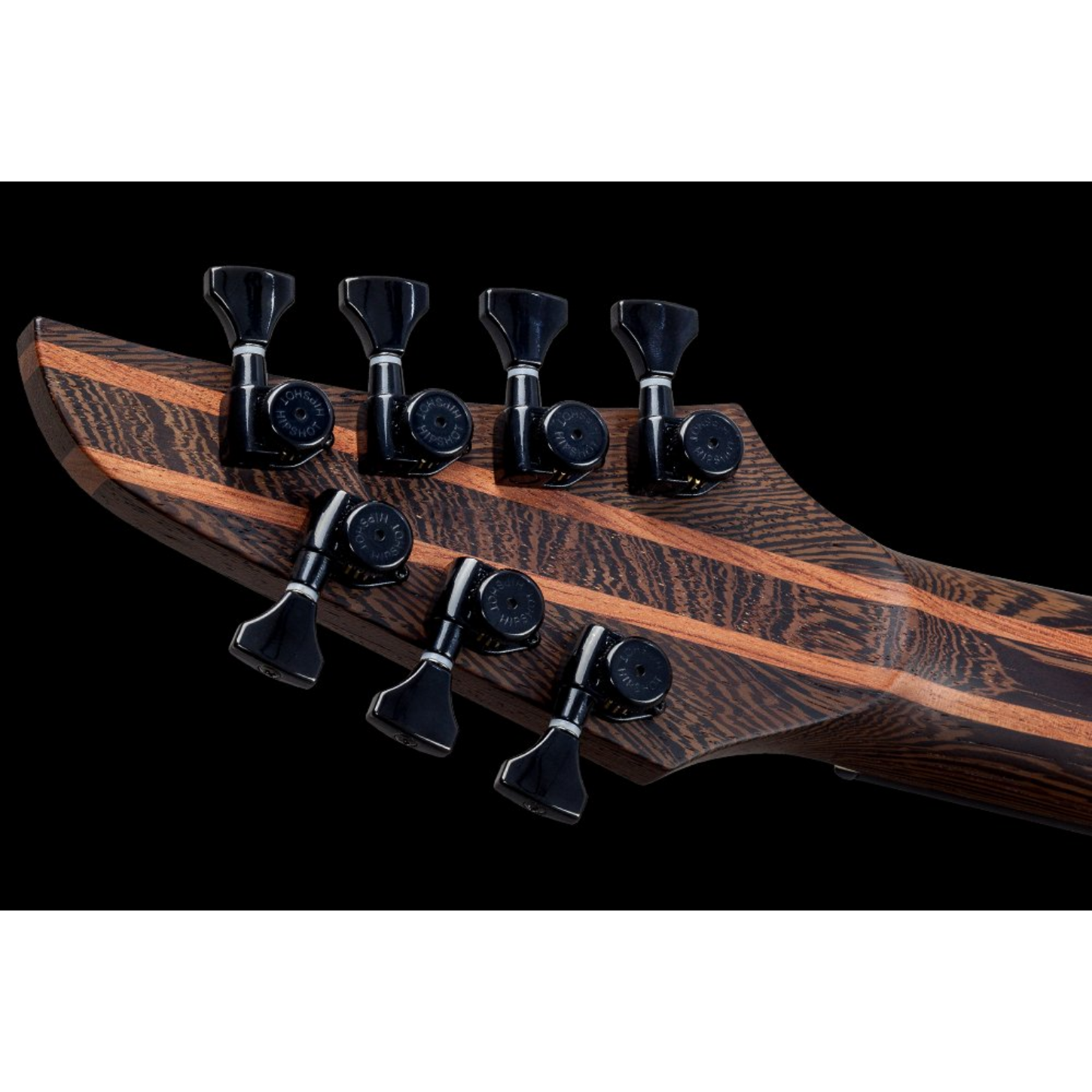

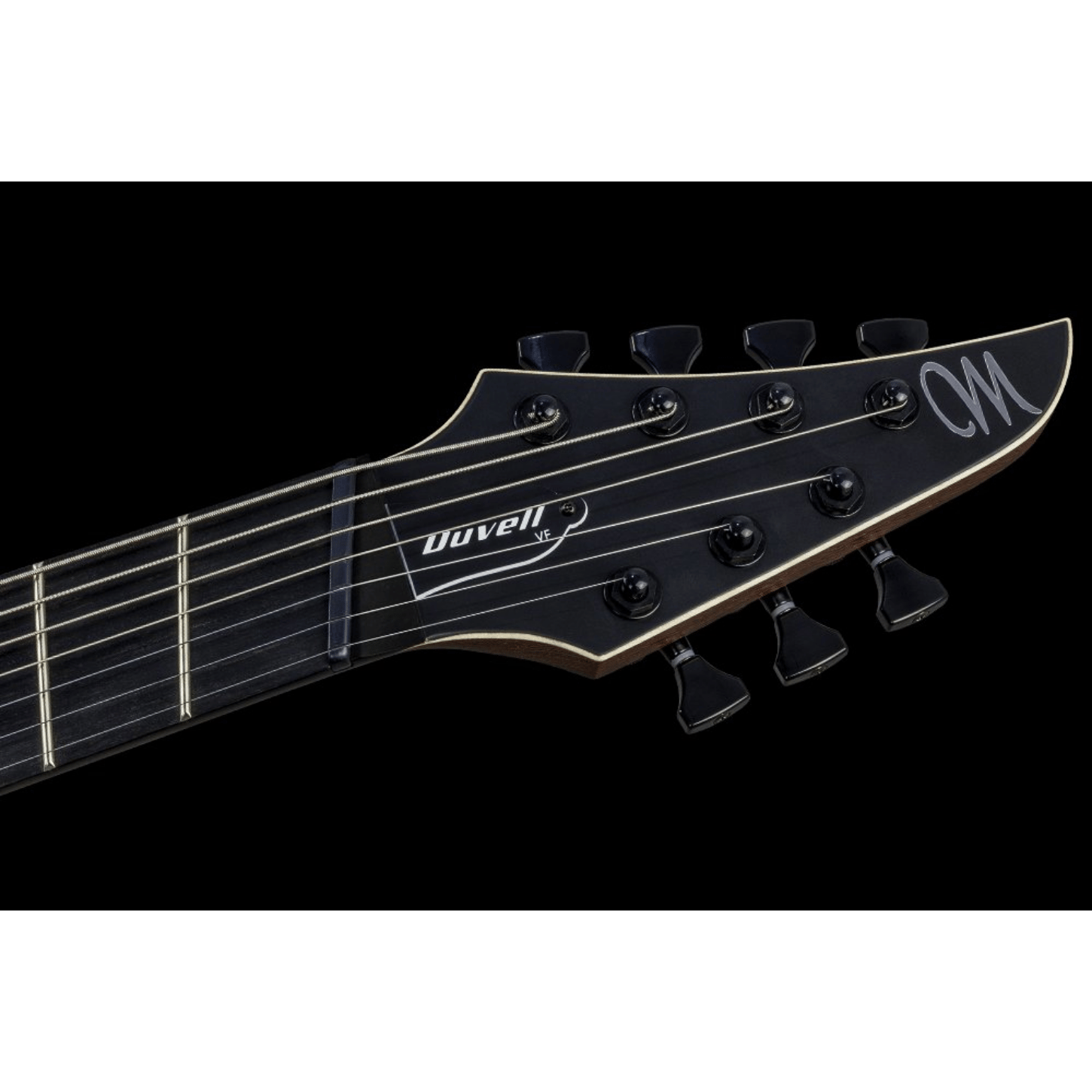

Headstock:
Angled
No binding
Monolith Black / Satine finish (M-BLK-S)
Nut:
Graph Tech Black TUSQ
Tuners layout:
4 + 3

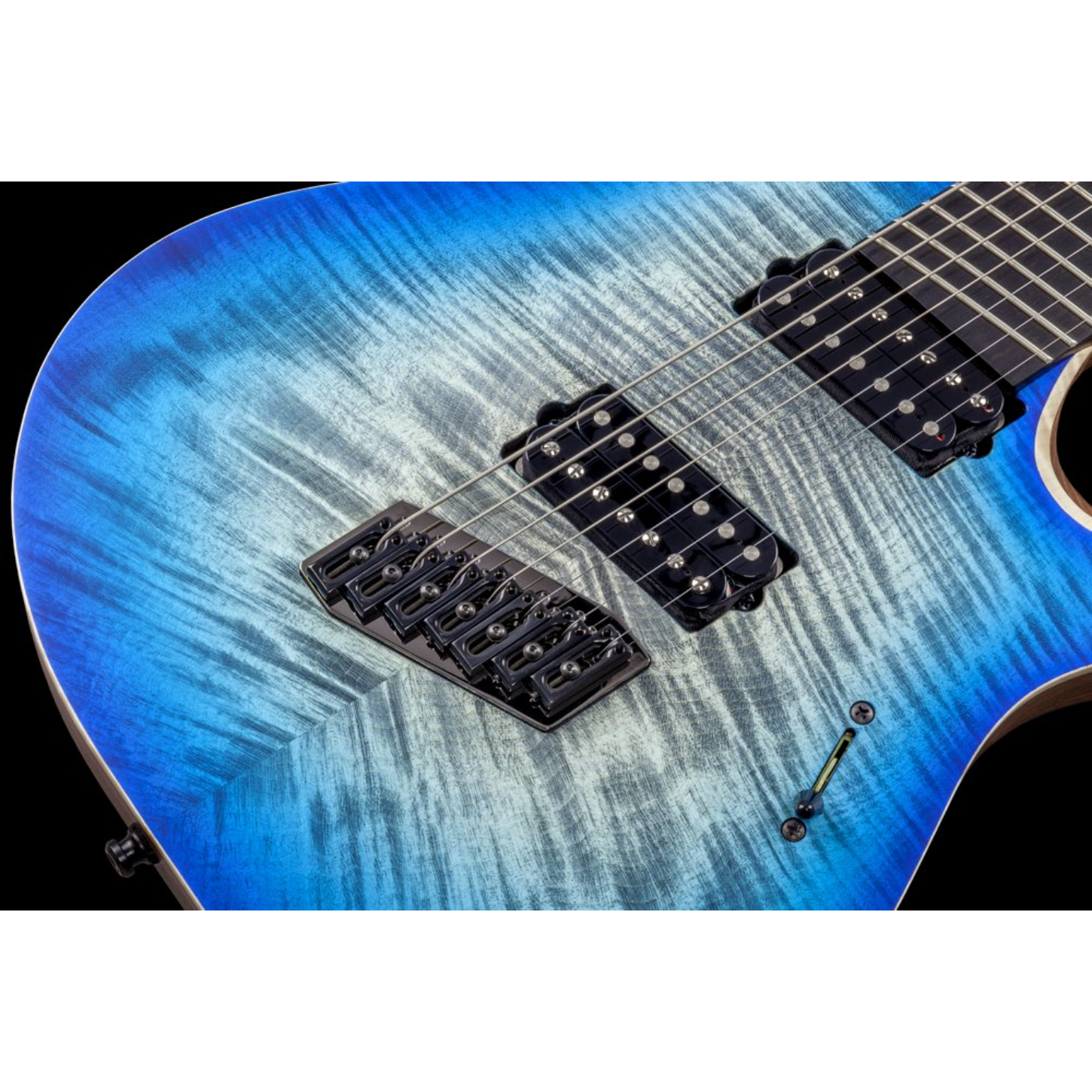

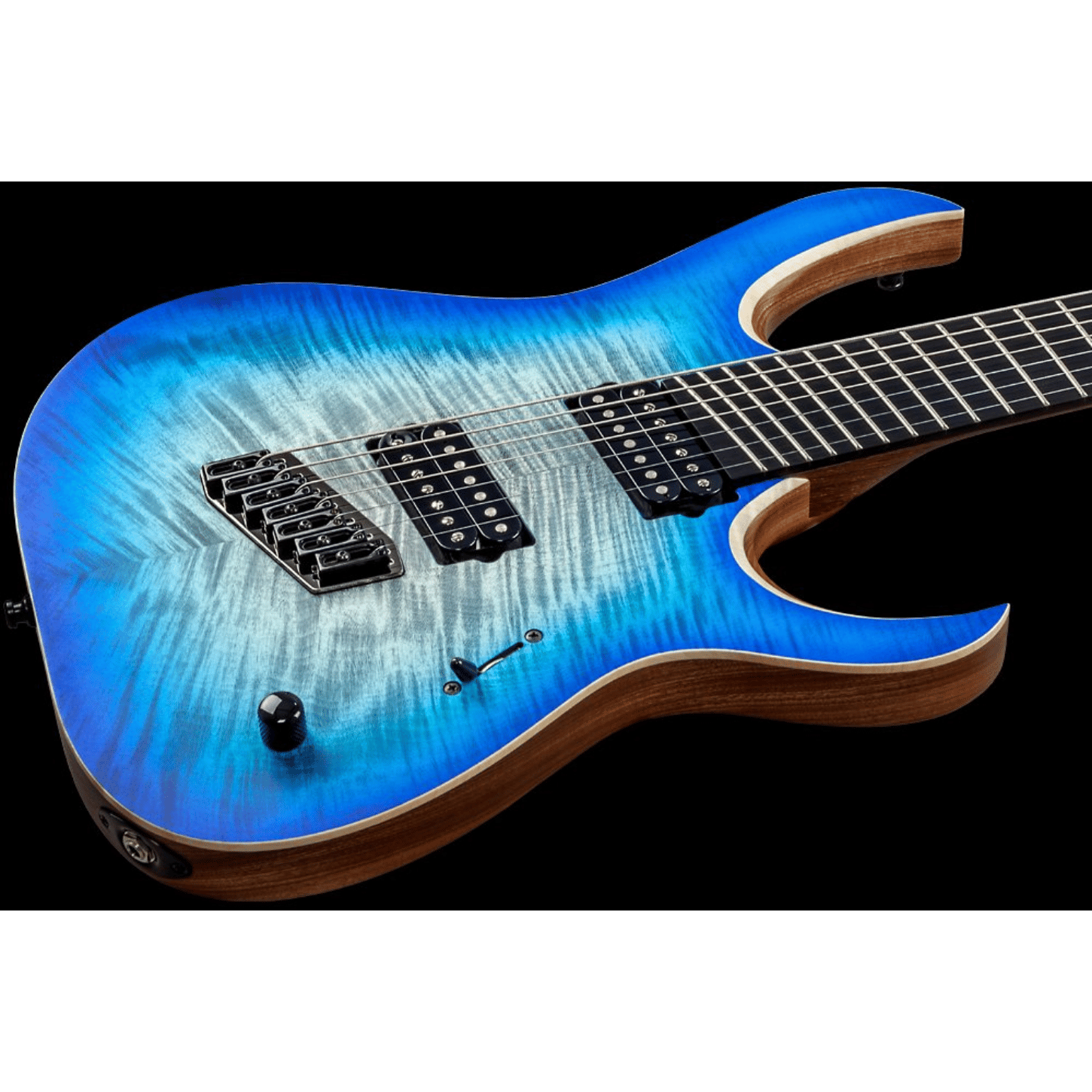

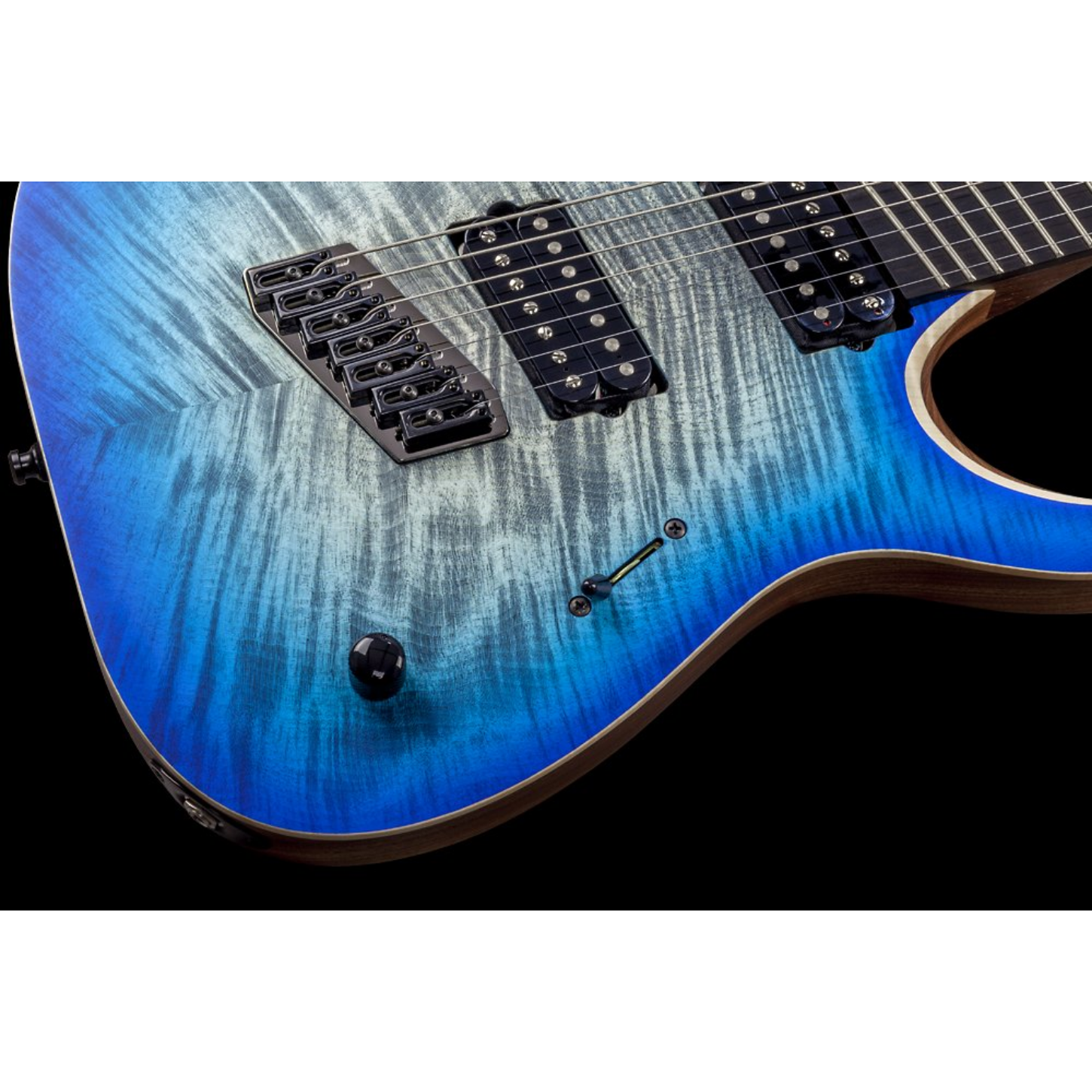

Pickups / Electronics:
H-H / Bare Knuckle Aftermath Set
[BKP] Short Leg Angled Base-Plates (Coils) Humbuckers
Other Brands, Models and Configuration of pickups – on request
(extra fee may be required)
Control:
1 x Volume (Push-Pull)
3-way lever switch
Push-pull pot for pickups with coil-split option only
Knobs:
Standard metal dome knob(-s)

Bridge:
NEW FOR 2018 - Hipshot Multi-Scale Fixed Bridge
Replaces the V•F Mayones Multiscale bridge.
Strings:
.010 - .60 [7-string]

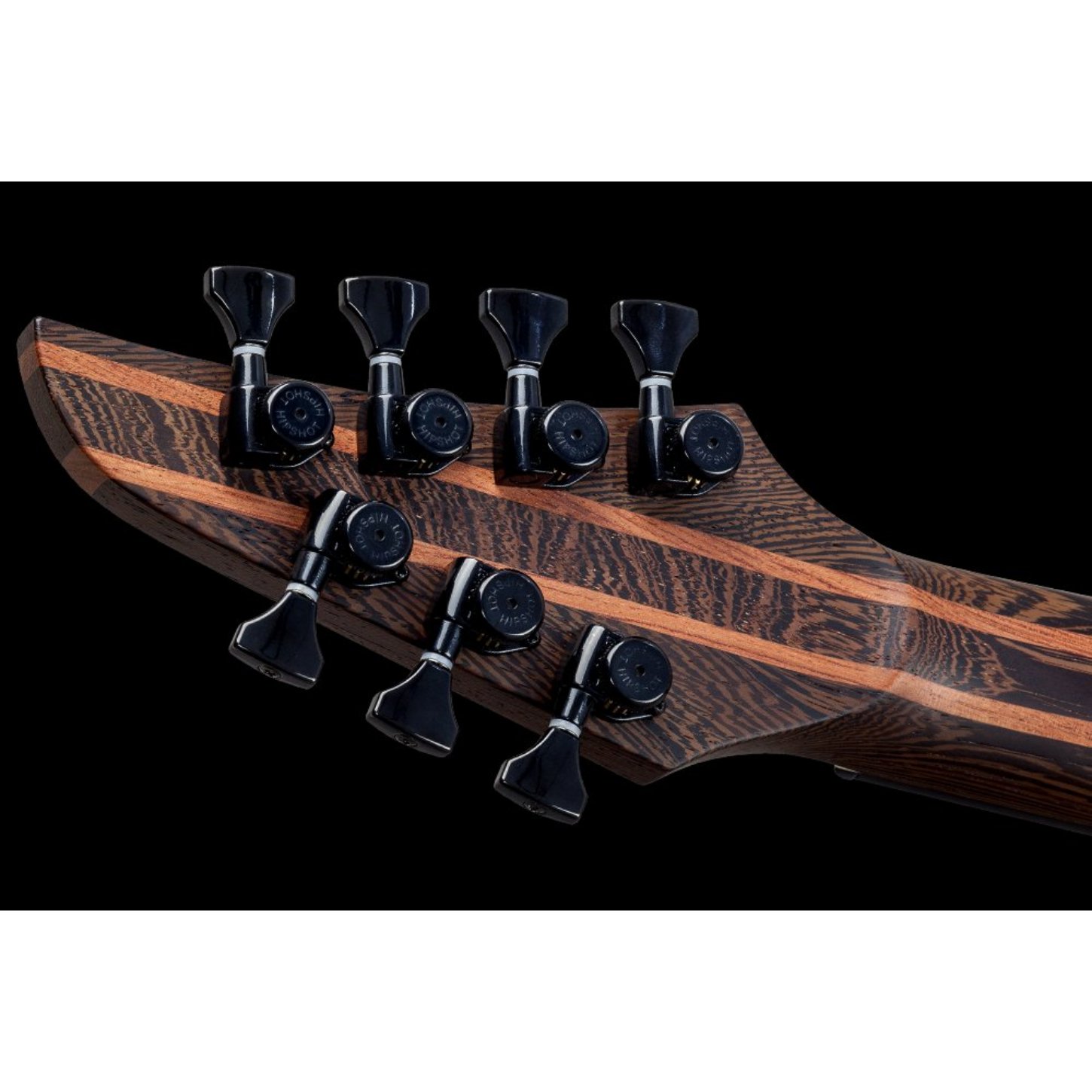

Tuners:
Hipshot Grip-Lock Locking Tuners
Additional equipment:
Schaller Security Straplocks
Switchcraft jack
Hardware colour:
Black (BLK)
Bag / case:
Mayones Hybrid Case
