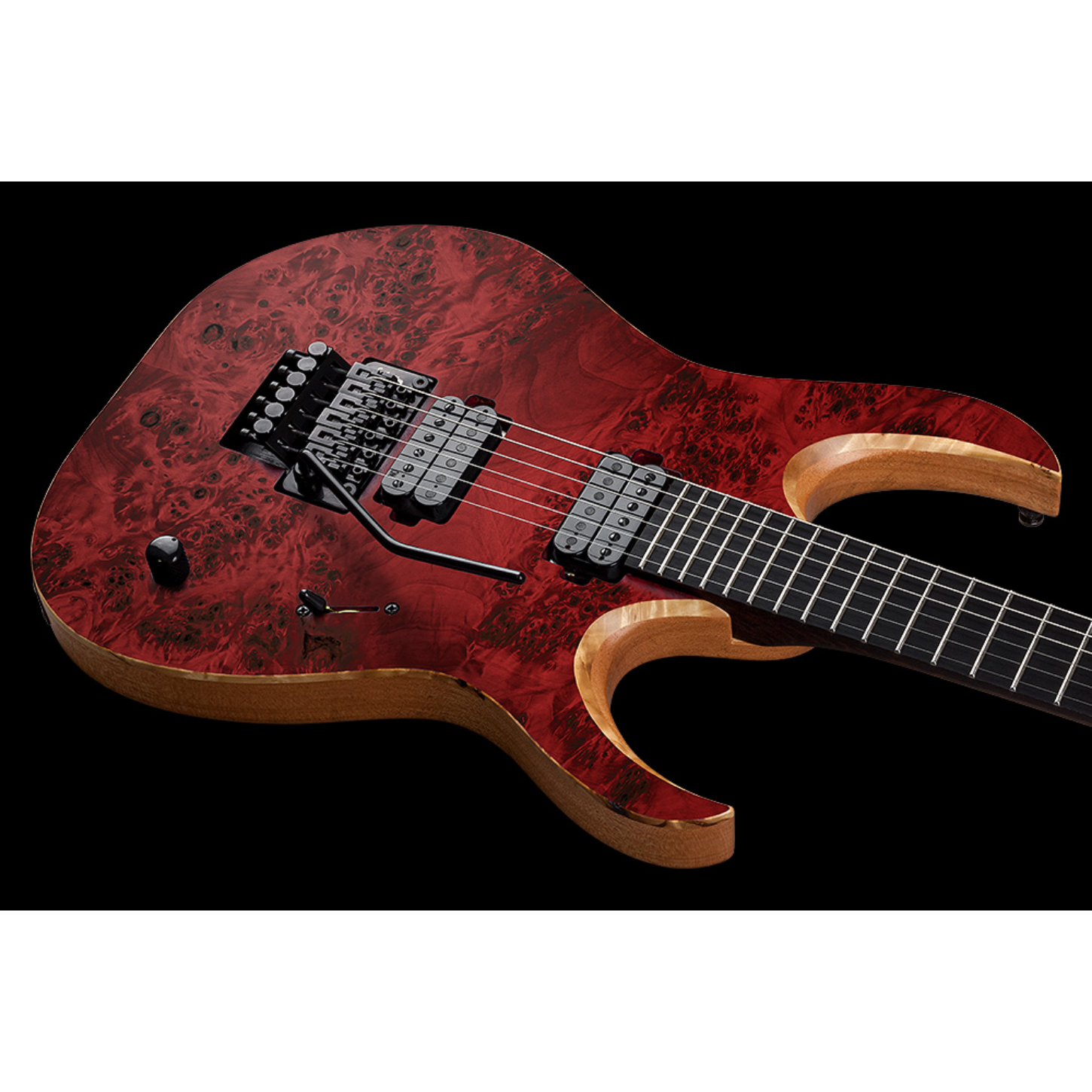

Body:
Mahogany
Top:
Eye Poplar
Neck heel:
Special contoured for easy upper frets access
Unique Features:

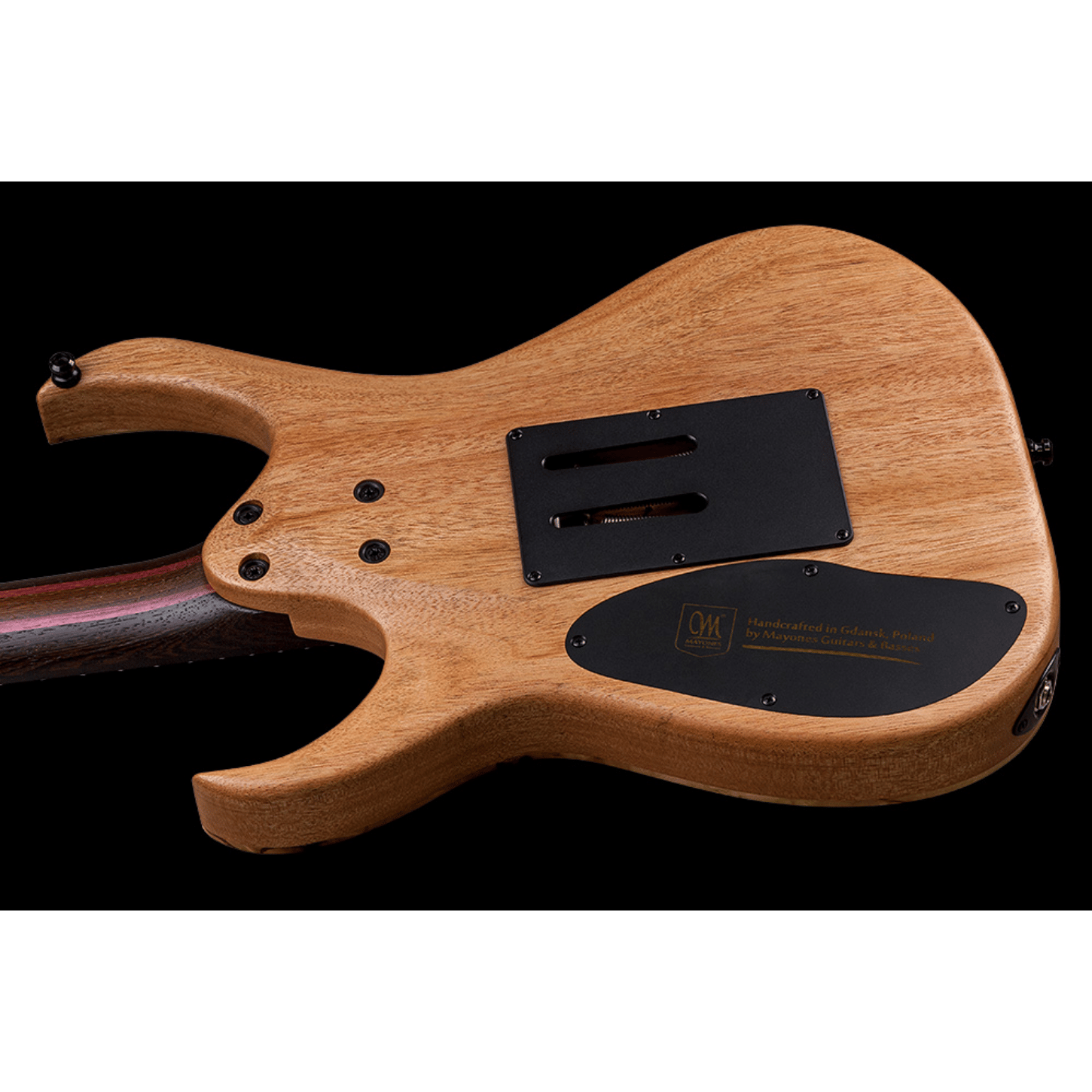

Back belly cut
Front forearm contour*
* - Replaces previous version with the Duvell 2019 Facelift.
Binding:
No binding

Construction:
Bolt-on neck joint with a 4-screw mounted on ferrules*
* - Replaces previous 6-screw version with the Duvell 2019 Facelift.

Scale:
25.4″ (645mm)
Neck:
5-ply / Wenge-Purpleheart
Post-2017, replacing 5-ply Wenge-Bubinga after new CITES regulations.
Radius:
16″ (406 mm)
Fingerboard:
Ebony
No binding
Markers & Inlays:
Original Luminlay™ side dots - Super Blue 2 mm
Neck dimensions:
Width at nut – 43.5 mm
Width XII fret – 54.0 mm
Width XXIV fret – 58.0 mm
Thickness I fret – 20.0 mm
Thickness XII fret – 21.0 mm
Truss rod:
Double action truss rod
Model's name inscripted in the trussrod cover
Frets:
24 extra jumbo, Ferd Wagner 9685 Stainless Steel
Crown dimensions: 2.80 × 1.45 mm (w × h)

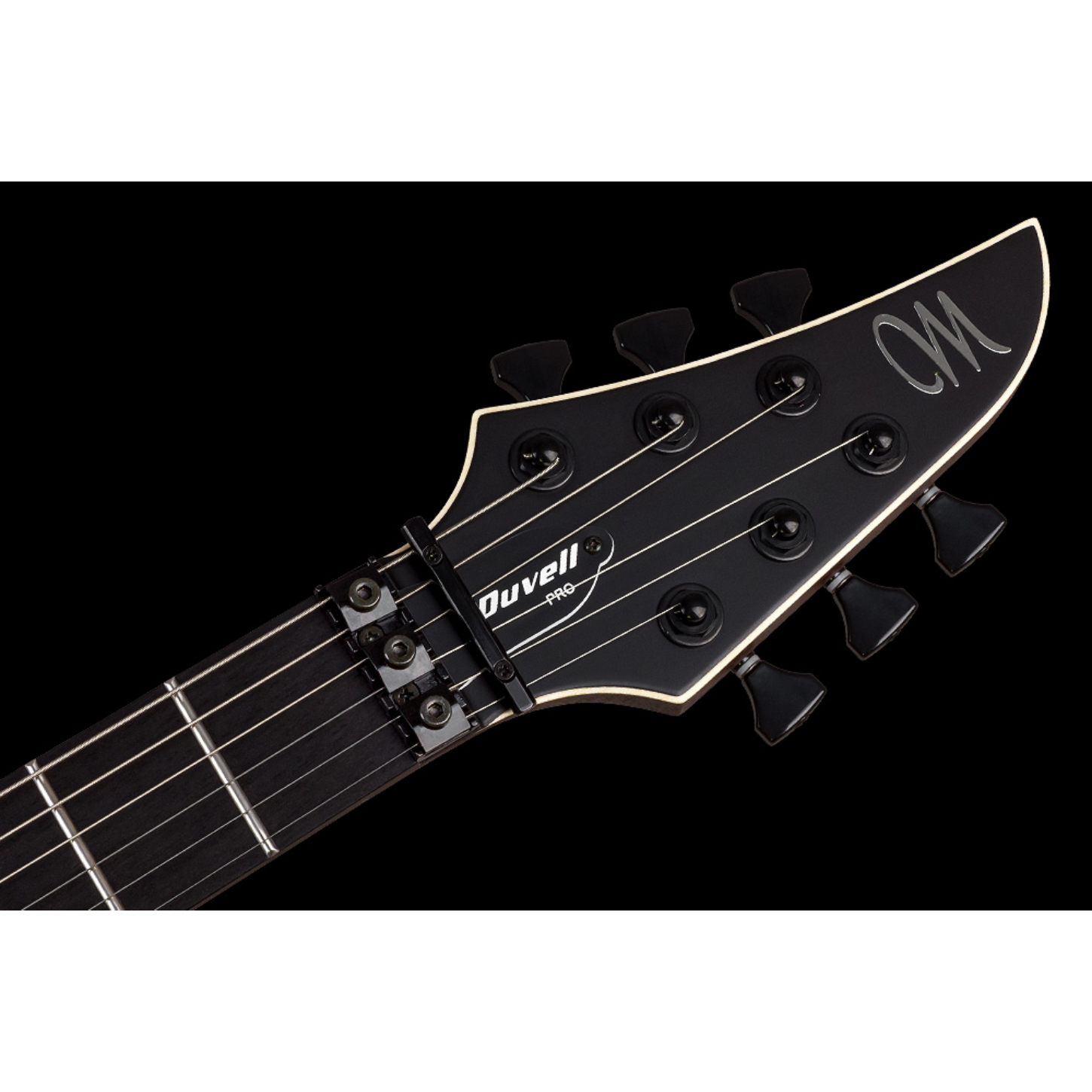

Headstock:
Angled
No binding
Monolith Black / Satine finish (M-BLK-S)
Nut:
Locking nut
Tuners layout:
3 + 3

Pickups / Electronics:
H-H / Velvetrone® Ironside + Solium
Other Brands, Models and Configuration of pickups – on request
(extra fee may be required)
Control:
1 × Volume
Mayones Treble Bleed Mod
Standard on all guitars built after summer of 2020.
5-way lever pickup switch
Knobs:
Standard metal dome knob(-s)

Bridge:
Schaller LockMeister® tremolo bridge
Strings:
.010 - .46 [6-string]
Tuners:
Hipshot Grip-Lock Locking Tuners
Additional equipment:
Schaller Security Straplocks
Switchcraft jack
Hardware colour:
Black (BLK)
Bag / case:
Mayones Hybrid Case
