Body:
Mahogany
Top:
Eye Poplar
Neck heel:
Special contoured for easy upper frets access
Unique Features:

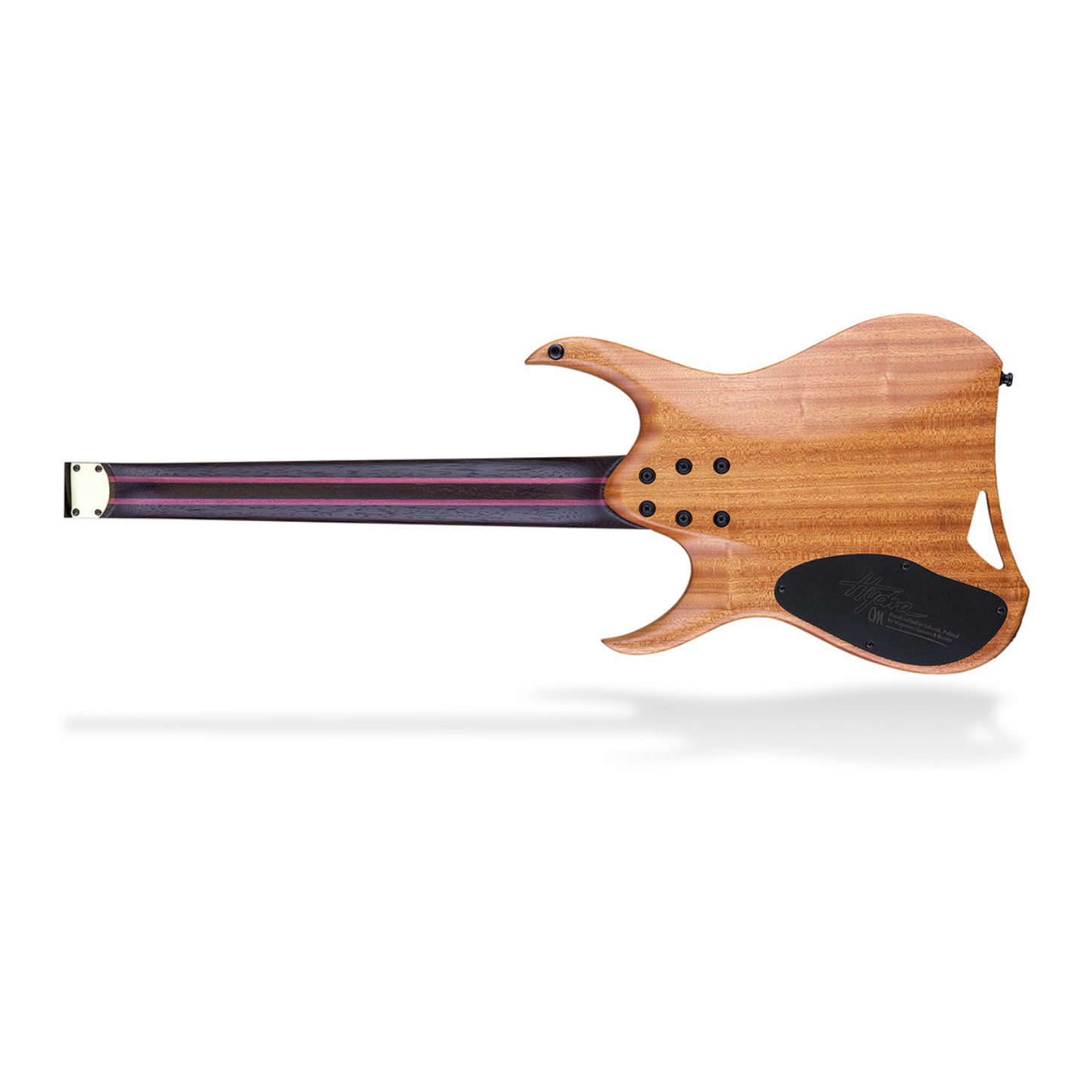

Bolt-on neck joint with a 6-screw mounted on ferrules
Back belly cut
Binding:
No binding

Construction:
Bolt-on neck joint with a 6-screw mounted on ferrules
Scale:
25.4″ (645mm)

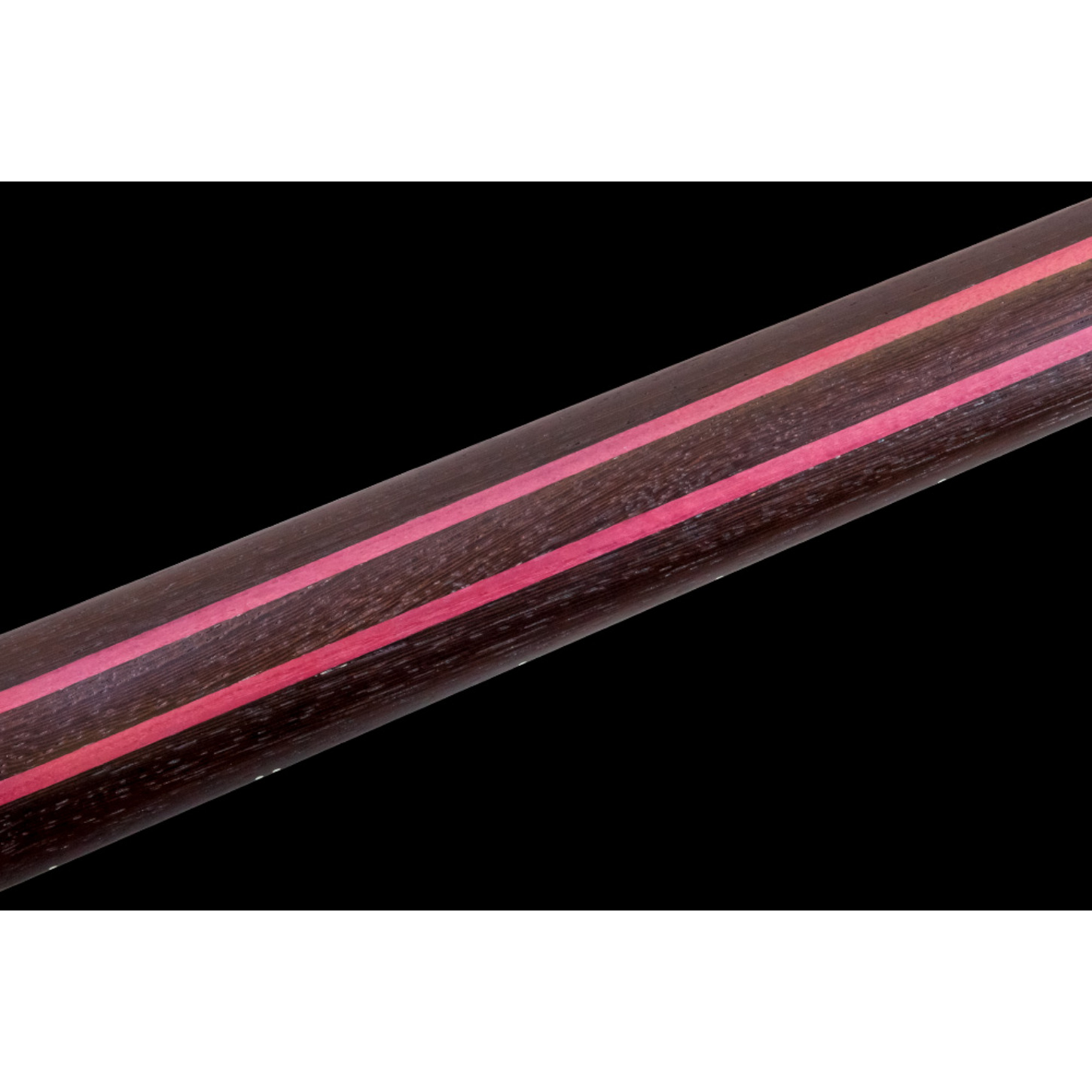

Neck:
5-ply / Wenge-Purpleheart
Radius:
16″ (406 mm)
Fingerboard:
Ebony
No binding
Markers & Inlays:
Original Luminlay™ side dots - Super Blue 2 mm
Neck dimensions:
Width at nut – 48.5 mm
Width XII fret – 61.0 mm
Width XXIV fret – 66.0 mm
Thickness I fret – 20.0 mm
Thickness XII fret – 21.0 mm
Truss rod:
Double action truss rod
Frets:
24 extra jumbo, Ferd Wagner Stainless Steel
Crown dimensions: 3,34 x 2.80mm (w × h)

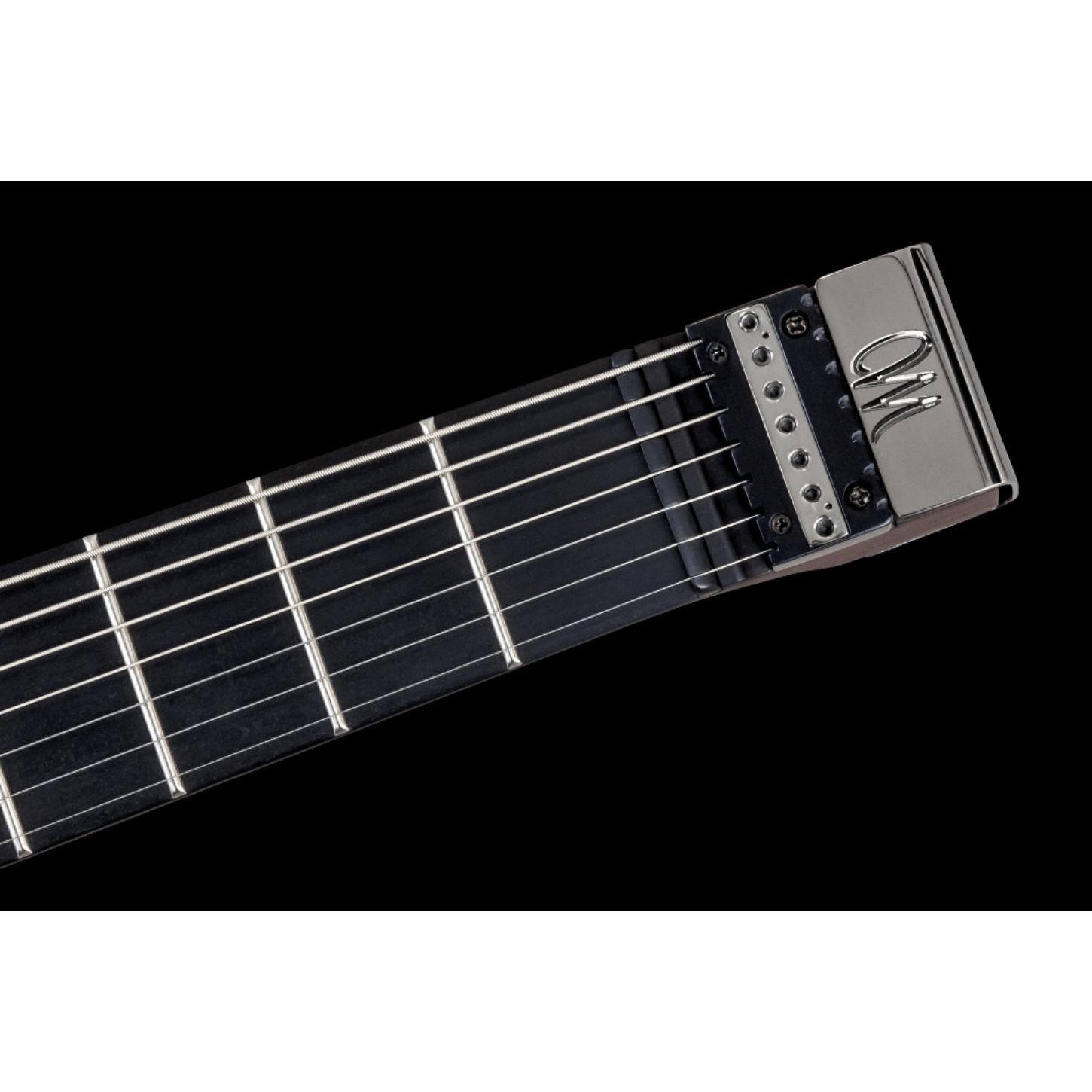

Headstock:
Headless version
S-CLAMP Brass Element
Nut:
Graph Tech Black TUSQ
Tuners layout:
N/A

Pickups / Electronics:
H-H / Velvetrone® Ironside + Solium
Other Brands, Models and Configuration of pickups – on request
(extra fee may be required)
Control:
1 × Volume
Mayones Treble Bleed Mod
Standard on all guitars built after summer of 2020.
5-way lever pickup switch
Knobs:
Standard metal dome knob(-s)

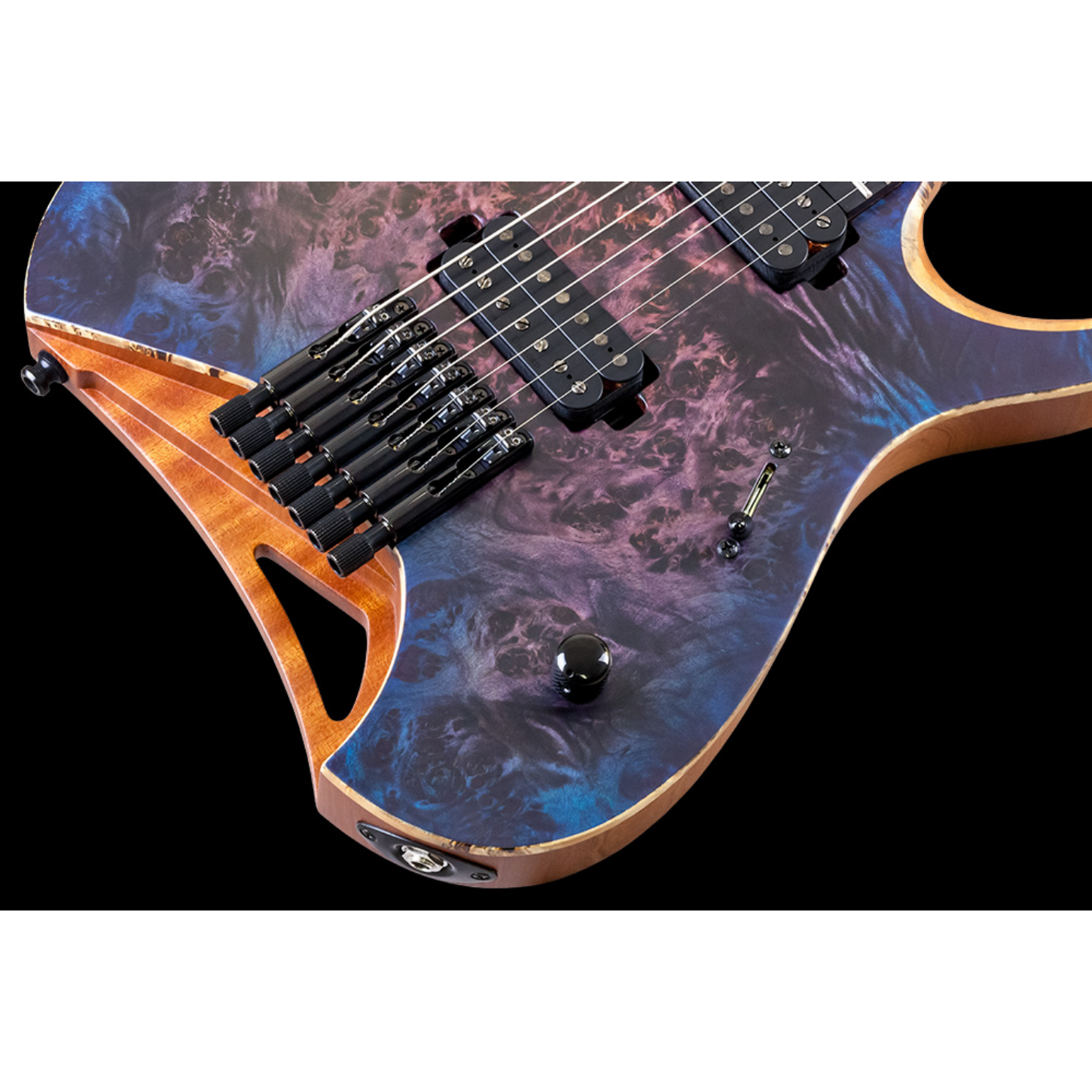

Bridge:
ABM single fine tuner bridge
Strings:
.010 - .60 [7-string]
Tuners:
Fine tuner integrated with each bridge element
Additional equipment:
Schaller Security Straplocks
Switchcraft jack
Hardware colour:
Black (BLK)
Bag / case:
Mayones Hybrid Case
